Side imaging turned a full day of scanning a lake into an hour of work for me. The best side imaging fish finders for lakes show you structure 100 feet to either side of the boat, so you can find a rock ledge or a weed edge before you ever make a cast.
We put nine side imaging units on the water across clear shallow lakes and deep reservoir drop-offs, logging hours in cold, sun-glared cockpits and in rain. If you want the short version: Humminbird and Garmin split the top of this list, with Humminbird winning on side-scan range and self-made mapping and Garmin winning on transducer clarity and fine menu control. Lowrance wins the middle of the market, where a single 3-in-1 transducer replaces three separate units.
Side imaging is sonar aimed sideways instead of down. A side-scan transducer fires a wide, flat beam out to port and starboard, and the unit paints the echoes as a shadow picture beside a center depth column. On a lake that means you can break down a 500-acre grass flat at speed, drop a waypoint on the edge that matters, then circle back and fish it. Every pick below ships with the transducer, so nothing needs a second purchase to see its first scan.
If you are still deciding between brands, start with our buying guide format and the screen size notes in the comparison table. Readers who want the reasoning first can jump to how we test hardware before we list it.
Table of Contents
Top 3 Best Side Imaging Fish Finders for Lakes in October
Garmin Striker 7SV
- SideVu plus ClearVu scanning
- CHIRP traditional sonar
- Bright 7 inch color TFT
- Quickdraw contour mapping
Lowrance Elite FS 10
- Active Imaging 3-in-1 transducer
- 10 inch touchscreen
- Preloaded C-MAP charts
- NMEA 2000 and Ethernet
Humminbird Helix 7 CHIRP SI GPS G4
- CHIRP Side and Down Imaging
- AutoChart Live recording
- Basemap for 10000+ lakes
- Softkey keypad control
The Striker 7SV takes the top slot because it puts genuine side scan in a package most lake anglers will actually mount, and its 7 inch screen stays readable at noon. The Elite FS is the value pick: a 10 inch touchscreen, three sonar modes in one transducer, and preloaded lake charts. The Helix 7 CHIRP SI is the mapping pick, since AutoChart Live records your own contours as you run.
All 9 Side Imaging Fish Finders Compared in 2026
| Product | Specs | Action |
|---|---|---|
| Garmin Striker 7SV |
|
Check Latest Price |
| Lowrance Elite FS 10 |
|
Check Latest Price |
 Lowrance HOOK2 12 |
|
Check Latest Price |
| Humminbird Helix 7 CHIRP SI GPS G4 |
|
Check Latest Price |
 Garmin STRIKER Plus 7sv |
|
Check Latest Price |
 Humminbird XPLORE 10 |
|
Check Latest Price |
 Garmin ECHOMAP UHD2 94sv |
|
Check Latest Price |
 Humminbird Helix 7 G4 MEGA |
|
Check Latest Price |
 Lowrance HDS PRO 10 |
|
Check Latest Price |
What Side Imaging Actually Shows You on a Lake
A side-scan beam is not a photo of the bottom. It is a narrow strip laid out in time: the newest reading sits at the center of the screen and older readings scroll outward to each side, so screen width equals track width behind you.
Reading it takes five steps. First, set the range to two to three times the water depth so you are not wasting screen on empty water. Second, watch for a hard shadow: rock, gravel, timber, and a ledge edge all return a dark, sharply defined shape. Third, look for texture behind the shadow, which usually means brush, a moss-covered boulder, or vegetation. Fourth, note baitfish arcs suspended above bottom, since gamefish stack under those arcs. Fifth, drop a waypoint the moment the shadow forms and drive a second pass to confirm it is structure and not a passing shadow of your own hull.
Side scan is shallow-water sensitive. Under about 10 feet the beam hits bottom at a steep angle and the picture turns to mush, which is why the higher frequency channels on these units exist. On deep lakes you can run 200 feet a side comfortably; on a clear 8 foot lake you may be reading 40 to 60 feet before returns get noisy.
1. Garmin Striker 7SV: The Best All-Round Side Scan for Lakes

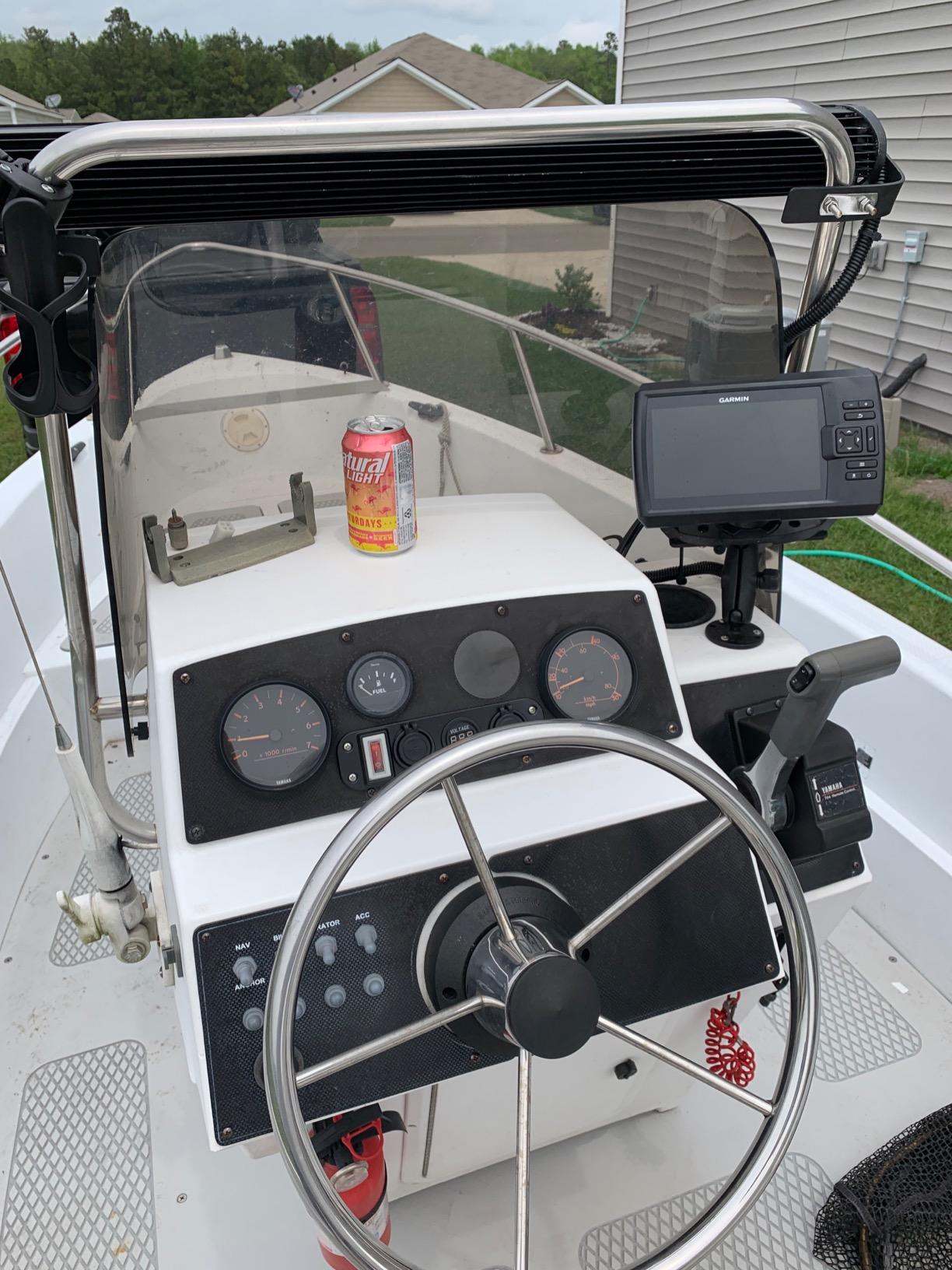

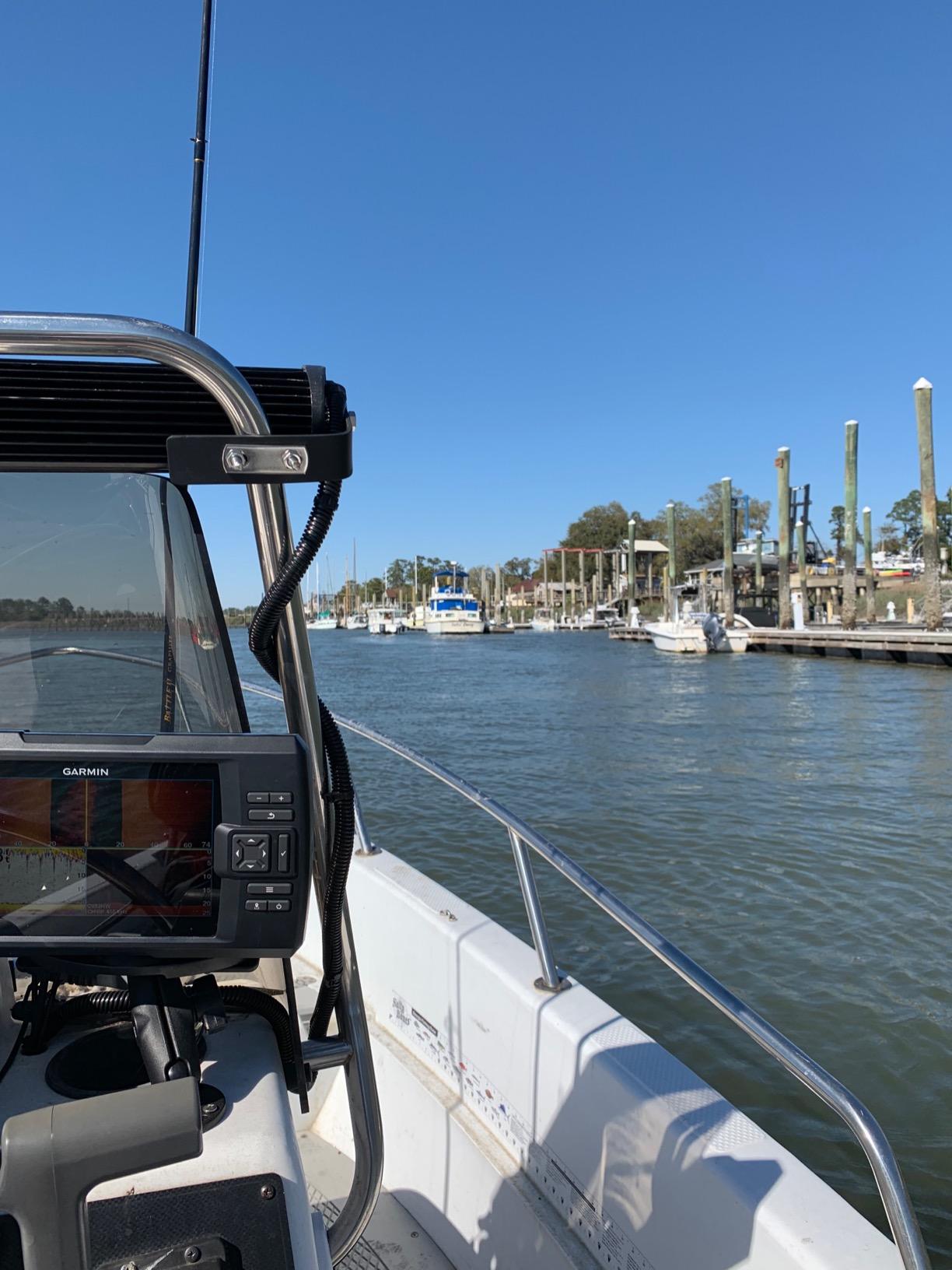

Garmin Striker 7SV with Transducer, 7″ GPS Fishfinder with Chirp Traditional, ClearVu and SideVu Scanning Sonar Transducer and Built in Quickdraw Contours Mapping Software, 7 inches (010-01874-00)
7 inch color TFT
SideVu plus ClearVu scanning
CHIRP traditional sonar
CV52HW-TM transducer included
Pros
- SideVu plus ClearVu and CHIRP traditional in one transducer
- Bright sunlight-readable 7 inch color TFT
- Quickdraw contours at 1 foot for up to 2 million acres
- Built-in Wi-Fi for waypoint transfer
- Easy install and intuitive menus
Cons
- No chartplotter so it marks waypoints only
- Some owners report SideVu detail that does not register structure
- ActiveCaptain navigation is hard to read in bright sun
The Garmin Striker 7SV is the unit I put on my own jon boat. It weighs 1.7 pounds, draws power from a single cable, and the 7 inch color TFT stays readable through glare. The CV52HW-TM transducer in the box gives you SideVu, ClearVu, and traditional CHIRP from one mount.
On a reservoir with steep creek channels, side scan showed me rock walls well past where the contour lines ended. Down imaging on the same transducer confirmed baitfish holding tight to the ledge.
Quickdraw contours are the quiet hero here. You draw your own 1 foot contour map as you run, and the unit stores it for the next trip. Built-in Wi-Fi moves waypoints to a phone, which saved me retyping marks at the ramp.
What you give up for that simplicity is charting. This is a GPS plotter, not a chartplotter, so lake structure maps have to come from a phone or a second display. That is a fair trade for anglers who only want to find and mark fish.
Why it works on shallow clear lakes
SideVu in this unit stays legible in water most units turn to noise. On a clear lake in the 12 to 15 foot range I could still separate brush edges from open sand.
The lack of a chartplotter actually helps shallow water work, because you are reading the sonar image rather than a map that never shows grass.
Where it falls short
A small group of owners report SideVu detail that fails to register structure or depth readings that wander. Keep the gain and range settings near default and check the transducer mount for a trapped bubble of air if the picture goes flat.
It also has no Ethernet or NMEA networking, so this is a single-display boat unless you pair it with a phone.
2. Lowrance Elite FS 10: Best Value With Three Sonars in One Transducer
Lowrance Elite FS 7 Fish Finder with Active Imaging 3-in-1 Transducer, Preloaded C-MAP Contour+ Charts
10 inch multi-touchscreen
CHIRP, SideScan and DownScan
FishReveal
C-MAP charts on board
Pros
- Active Imaging 3-in-1 gives CHIRP
- SideScan and DownScan with FishReveal
- Large 10 inch multi-touchscreen
- Preloaded C-MAP DISCOVER charts for inland water
- Wireless
- NMEA 2000 and Ethernet networking
- ActiveTarget 2 XL upgrade path
Cons
- Setup and sonar settings take real practice
- Listed in 7 to 12 inch sizes so the pictured bundle varies
- Touch controls are awkward with wet or gloved hands
The Lowrance Elite FS is the most complete package in this group without moving into networked multi-display territory. One Active Imaging 3-in-1 transducer covers CHIRP, SideScan, and DownScan, and FishReveal separates fish returns from bottom on the down view.

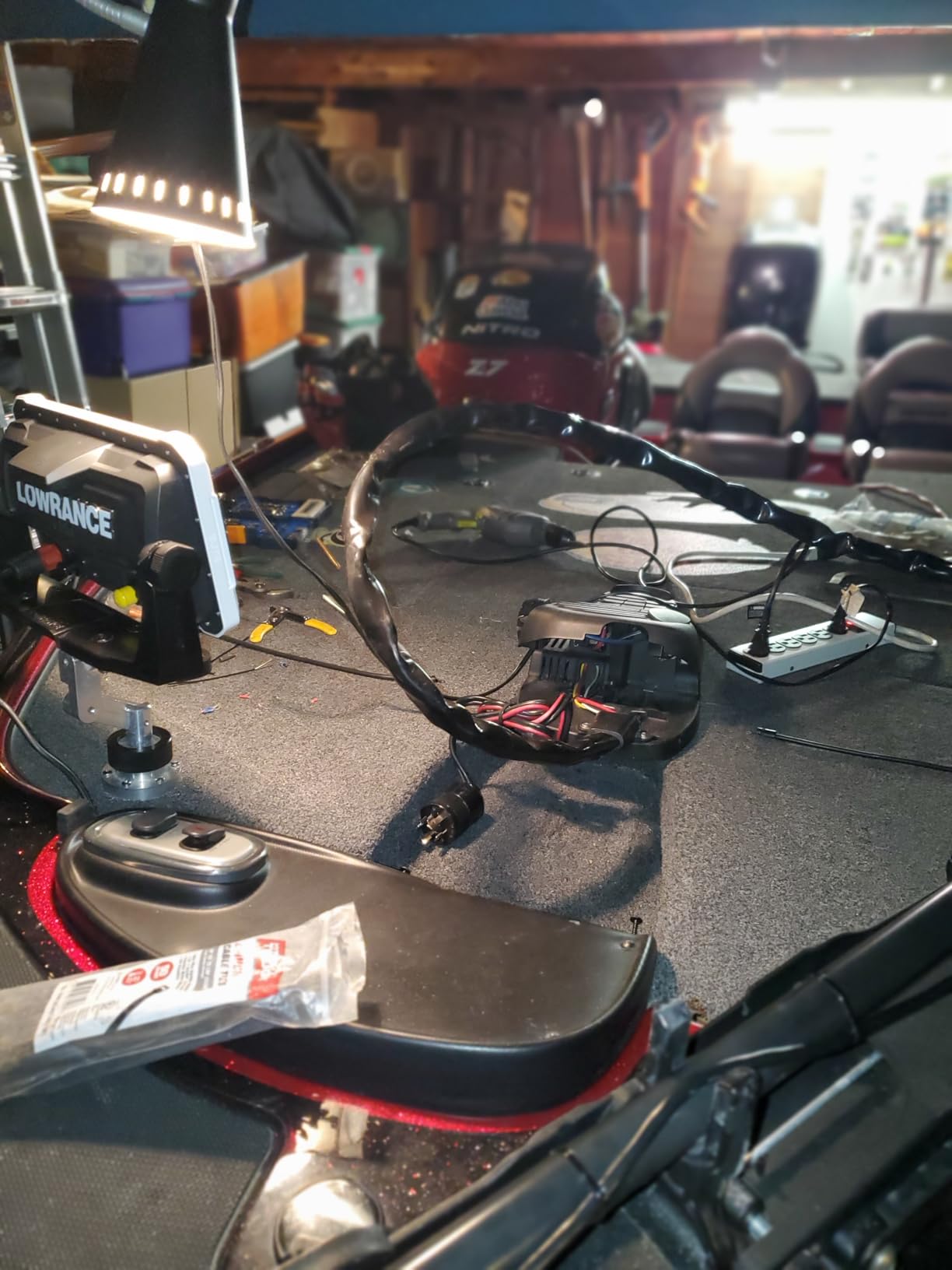

I paired it with a bow-mounted trolling motor and had sonar, charts, and motor control on one screen. The preloaded C-MAP DISCOVER charts meant I could find structure on a lake I had never fished before running a trolling motor route.
Image quality is the strongest argument here. Side scan on this unit resolved small brush piles and rock scatter that the cheaper units blurred together. Rated depth capability goes to 1000 feet, far beyond any lake, but it means the unit does not choke on a deep reservoir run.
Networking is the other reason to stretch the budget. Ethernet, NMEA 2000, and wireless let you add a second display at the helm later without changing brands.
Best use: mapping a lake you have never seen
With C-MAP charts on board and side scan running, I could find a ledge, drop a waypoint, and confirm it by running the contour in reverse. That loop is faster than fishing blind water.
The 10 inch touchscreen also splits well, showing side scan beside the chart without either becoming unreadable.
Where it falls short
The setup is the hardest part of this unit. Sonar gain, frequency, and palette menus take an afternoon to tune, and buyers who expect a phone-style experience on day one tend to be disappointed.
Because the model is listed from 7 to 12 inches, read the bundle carefully. The pictured configuration is the 10 inch display with the 3-in-1 transducer.

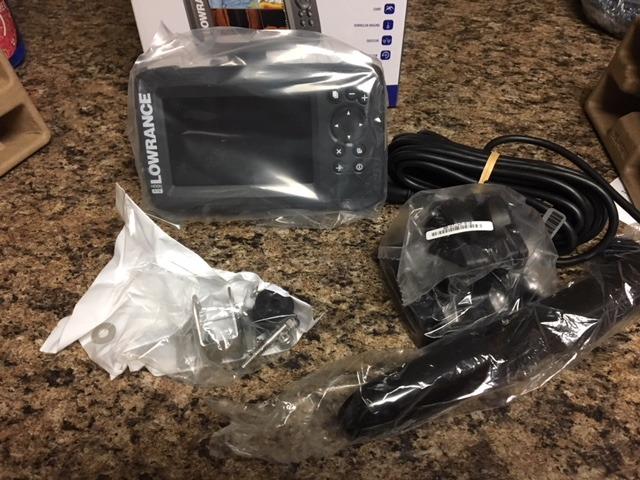

3. Lowrance HOOK2 12: Best for Big Screens and Big Range

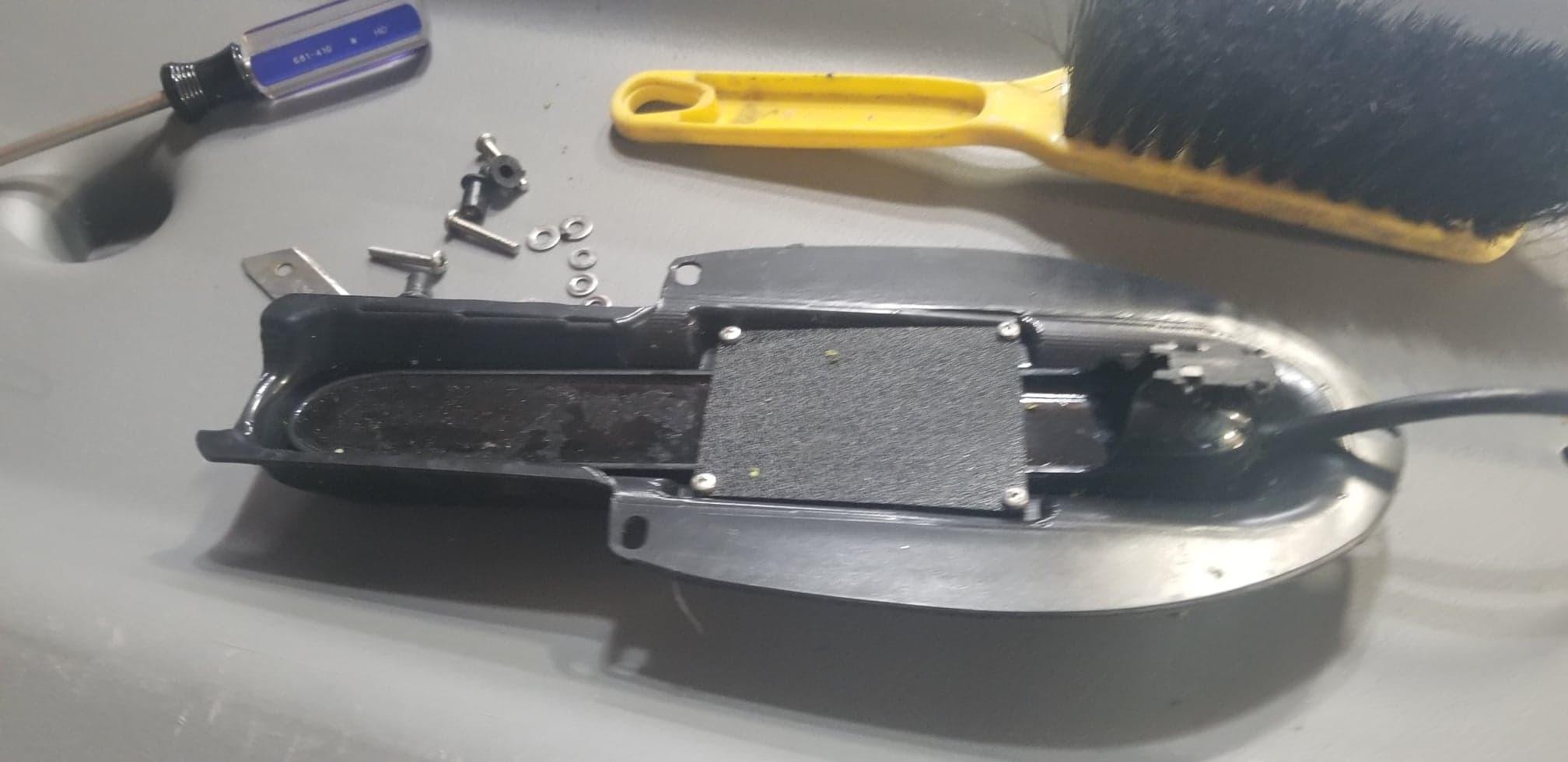

Lowrance HOOK2 12 – 12-inch Fish Finder with TripleShot Transducer and US Inland Lake Maps Installed …
12 inch LED display
TripleShot transducer
SideScan up to 300 feet a side
4000 lakes at 1 foot contours
Pros
- TripleShot covers SideScan up to 300 feet each side plus DownScan and CHIRP
- Preloaded maps for 4000 US lakes at 1 foot contours
- Auto-tuning sonar and phone-like menus
- SD card slot for maps and upgrades
- 12 inch LED display readable in sunlight
Cons
- SideScan detail reported as weak against Garmin units
- No color or contrast adjustment options
- Cannot record custom contours while boating
The HOOK2 12 is the range leader in this group. The TripleShot transducer puts SideScan out to 300 feet on each side along with DownScan and traditional CHIRP, all from a single transom mount.
On a big reservoir I ran it at 200 feet a side and could still see drop-offs and weed patches well off the boat. That reach matters when you are covering water rather than working one spot.
The 12 inch LED display is easy to read from the helm and the auto-tuning sonar means the unit configures itself on launch. Preloaded mapping covers 4000 US lakes at 1 foot contours, which covers most of what an inland angler will fish.
Setup is genuinely simple. A single transducer mounts on the transom, inside the hull, on the trolling motor, or through a scupper hole on a kayak.
Best use: covering unfamiliar big water fast
The 300 foot side scan reach turns a whole reservoir section into one pass. Mark the good shadows and come back with a live bait approach rather than trolling the whole flat.
If you fish from a small boat where screen real estate is wasted, a 12 inch panel still works because the split views stay legible.
Where it falls short
Several buyers report SideScan detail that is soft compared with Garmin units on the same bottom. Image separation is the weak spot, not range or mapping.
There is also no color or contrast adjustment, and the unit cannot record your own contours while you run, which limits self-made mapping work.

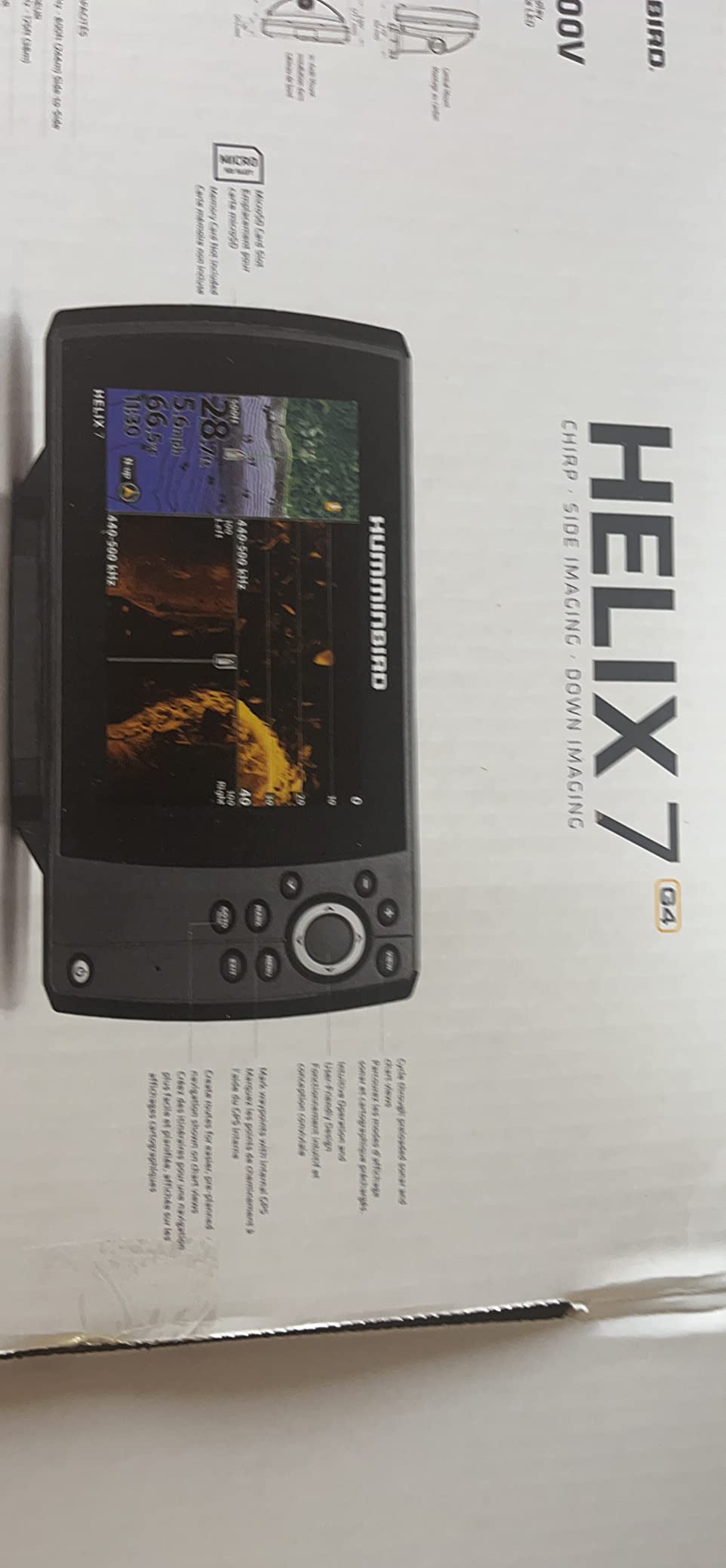

4. Humminbird Helix 7 CHIRP SI GPS G4: Best for Building Your Own Lake Maps
Humminbird 411590-1 Helix 7 Chirp SI GPS G4
7 inch color TFT
CHIRP Side and Down Imaging
AutoChart Live mapping
Softkey keypad control
Pros
- CHIRP Side Imaging plus CHIRP Down Imaging and Dual Spectrum CHIRP
- AutoChart Live with 8 hours of built-in recording
- Basemap covers more than 10000 lakes
- LakeMaster
- CoastMaster and Navionics compatible
- Softkey keypad stays usable in rough water
Cons
- Menus and settings take practice to learn
- Shorter side scan reach than MEGA Imaging models
The Helix 7 CHIRP SI GPS G4 is the mapping pick in this roundup. AutoChart Live records contours, bottom hardness, and vegetation as you run, with eight hours of recording built in.
That mapping ability is what separates Humminbird from the Garmin units at this screen size. On a lake I had no chart for, a full run at 20 mph produced a usable contour map by the end of the day.
The transducer included is an XNT 9 HW SI T transom mount that carries CHIRP Side Imaging, CHIRP Down Imaging, and Dual Spectrum CHIRP with Wide and Narrow modes. Internal GPS and the Humminbird Basemap cover more than 10000 lakes plus US coastal water.
Control is by softkey keypad rather than touch. In waves and rain, buttons with physical feedback are easier to hit than a wet screen, and older anglers tend to adapt faster to this layout.
Best use: learning an unfamiliar lake over a season
Self-recorded maps compound. Every trip adds contour detail, and after a few runs you have a private chart of the lake with your own structure marked.
Premium chart cards such as LakeMaster, CoastMaster, and Navionics drop into the same slot if you want a pro map instead.
Where it falls short
Menu navigation takes practice. The settings tree is deep, and first-time users often spend the first trip fighting the interface rather than reading fish.
Side scan range is shorter than the MEGA Imaging models here, so it is a slower scout on very deep lakes than the Helix 7 G4 or the XPLORE.

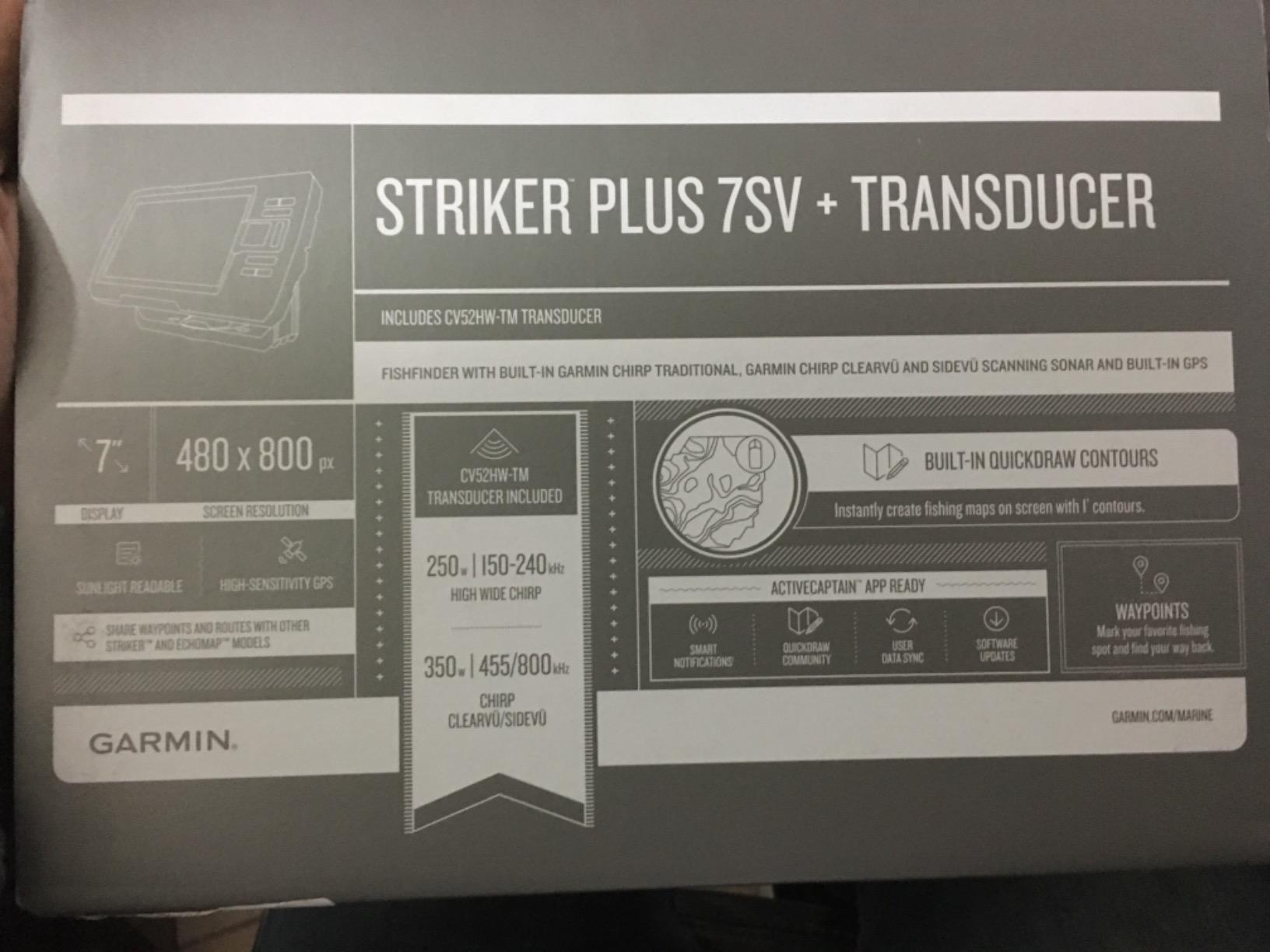

5. Garmin STRIKER Plus 7sv: Best for a Kayak or Small Boat

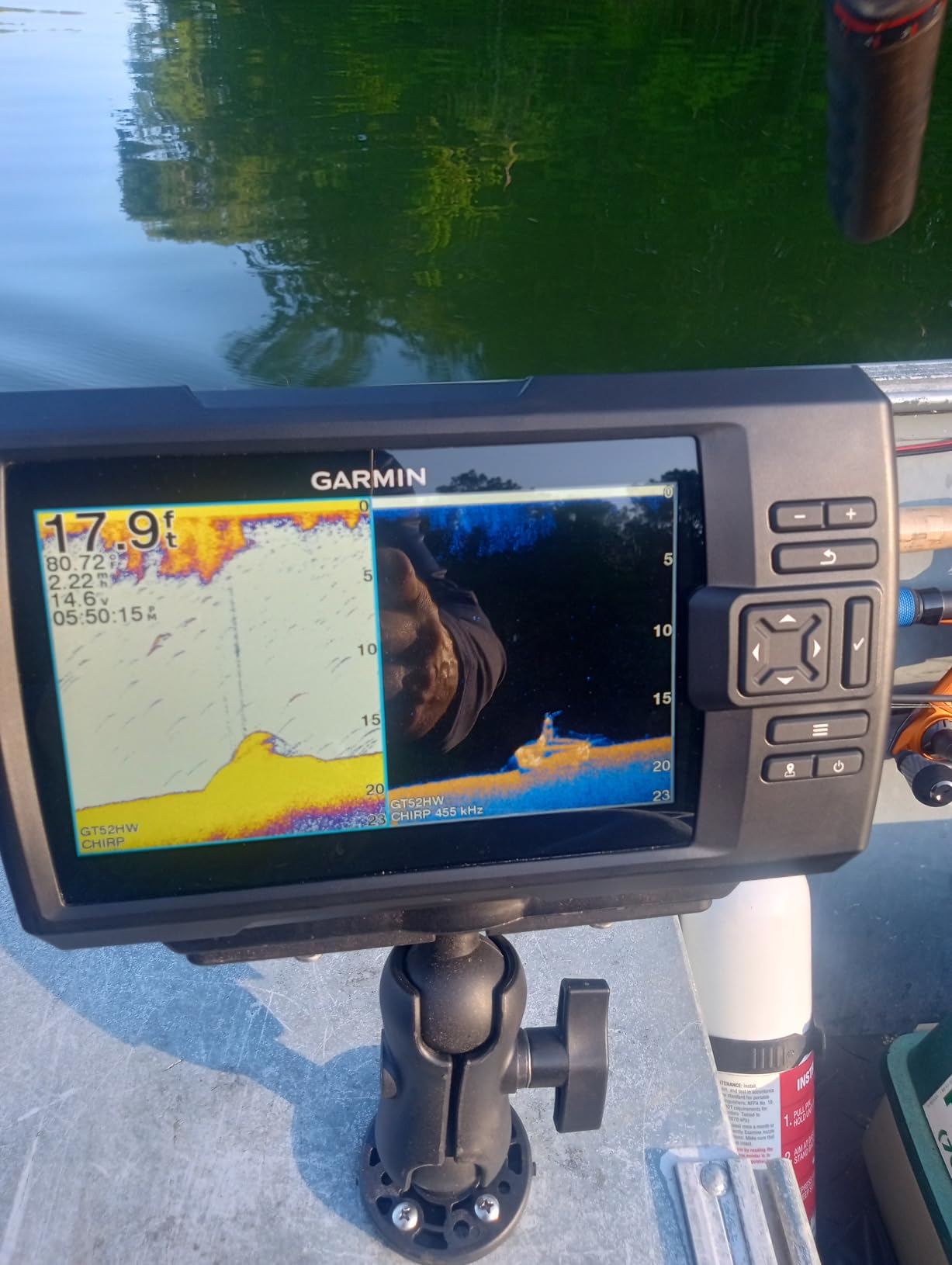

Garmin STRIKER Plus 7sv with CV52HW-TM Transducer and Protective Cover, 7 inches 010-01874-00
7 inch color TFT
CV52HW-TM transducer included
Quickdraw contours
Protective cover included
Pros
- SideVu plus ClearVu and CHIRP from the included CV52HW-TM
- Quickdraw contours build 1 foot maps on the fly
- Bright sunlight-readable 7 inch color TFT
- Light and workable from a kayak
- Protective cover included
Cons
- No chartplotter so charts need another device
- Screen glare reported in direct sun
- One owner reported a depth reading stuck at 2.8 feet
This is the Garmin variant that bundles a protective cover with the same CV52HW-TM transducer and 7 inch display as the Striker 7SV. For a kayak or jon boat that lives in a truck bed, the cover matters more than most buyers expect.
Mounting is where it wins. Owners routinely report running it from a kayak with a RAM-style arm and a single power lead, and the tilt/swivel bracket keeps the screen readable on the side of the hull.
SideVu and ClearVu come from the included transducer alongside traditional CHIRP, so a shallow lake scout gets both side and down detail from one puck. Quickdraw contours let you build a 1 foot map of a private lake while you fish it.
The Wi-Fi link handles waypoint transfer to a phone, which is the practical way to save a good day of marks from a small boat.
Best use: a kayak that needs one small screen
A 7 inch unit is about the largest screen that stays out of the way on a kayak deck. This one balances brightness, weight, and single-transducer simplicity in a way bigger units cannot.
The included cover protects it from sand and paddle contact between trips.
Where it falls short
Glare shows up in direct midday sun on the glossy panel, which is a common complaint from small-boat anglers who cannot reposition the screen much.
Like the other Striker 7sv listing, there is no chartplotter, and a small number of owners reported a depth reading that would not move off 2.8 feet, a sign of a transducer or mount problem rather than a software one.

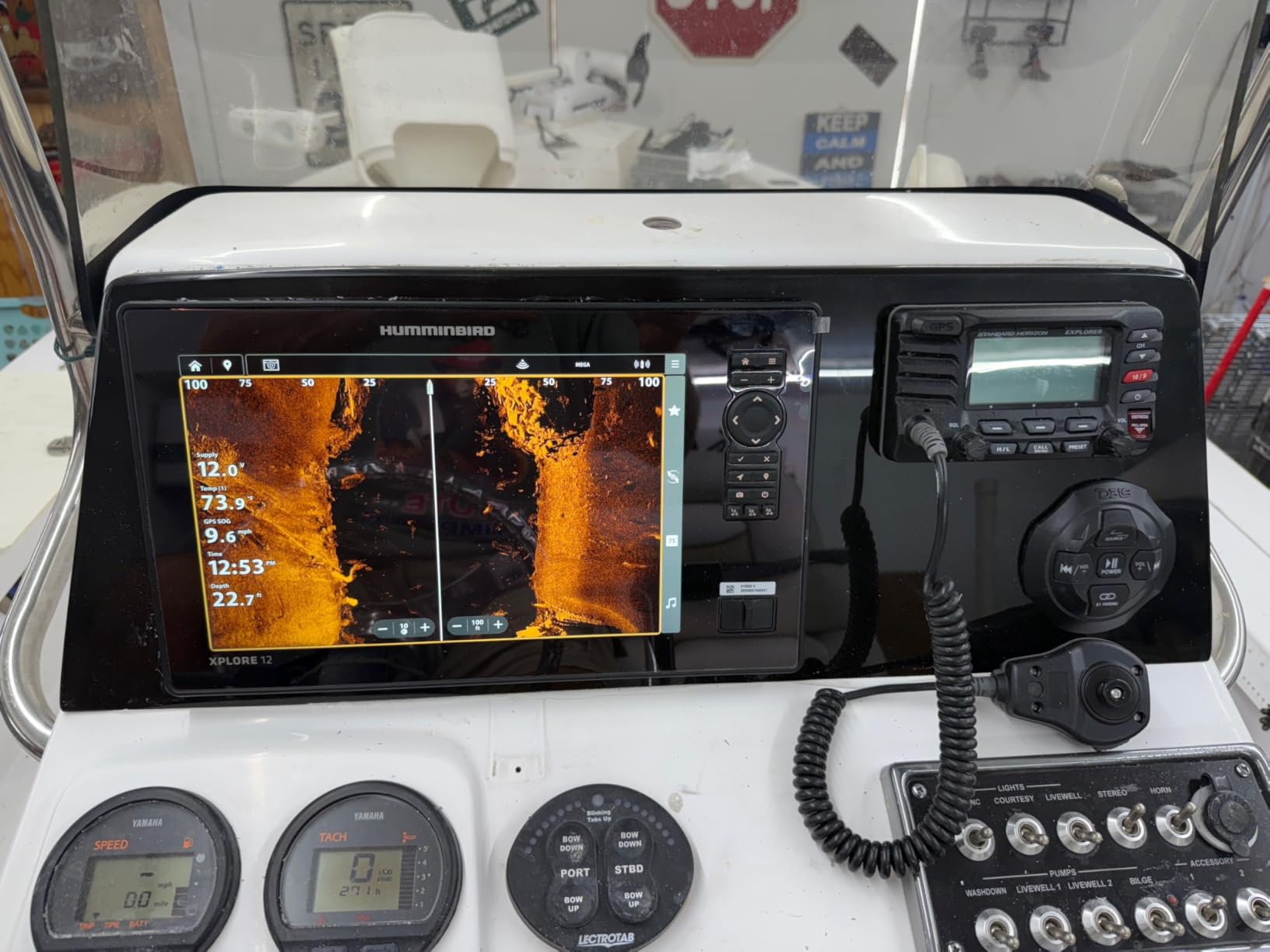

6. Humminbird XPLORE 10: Best Touchscreen Control With the Longest Side Scan

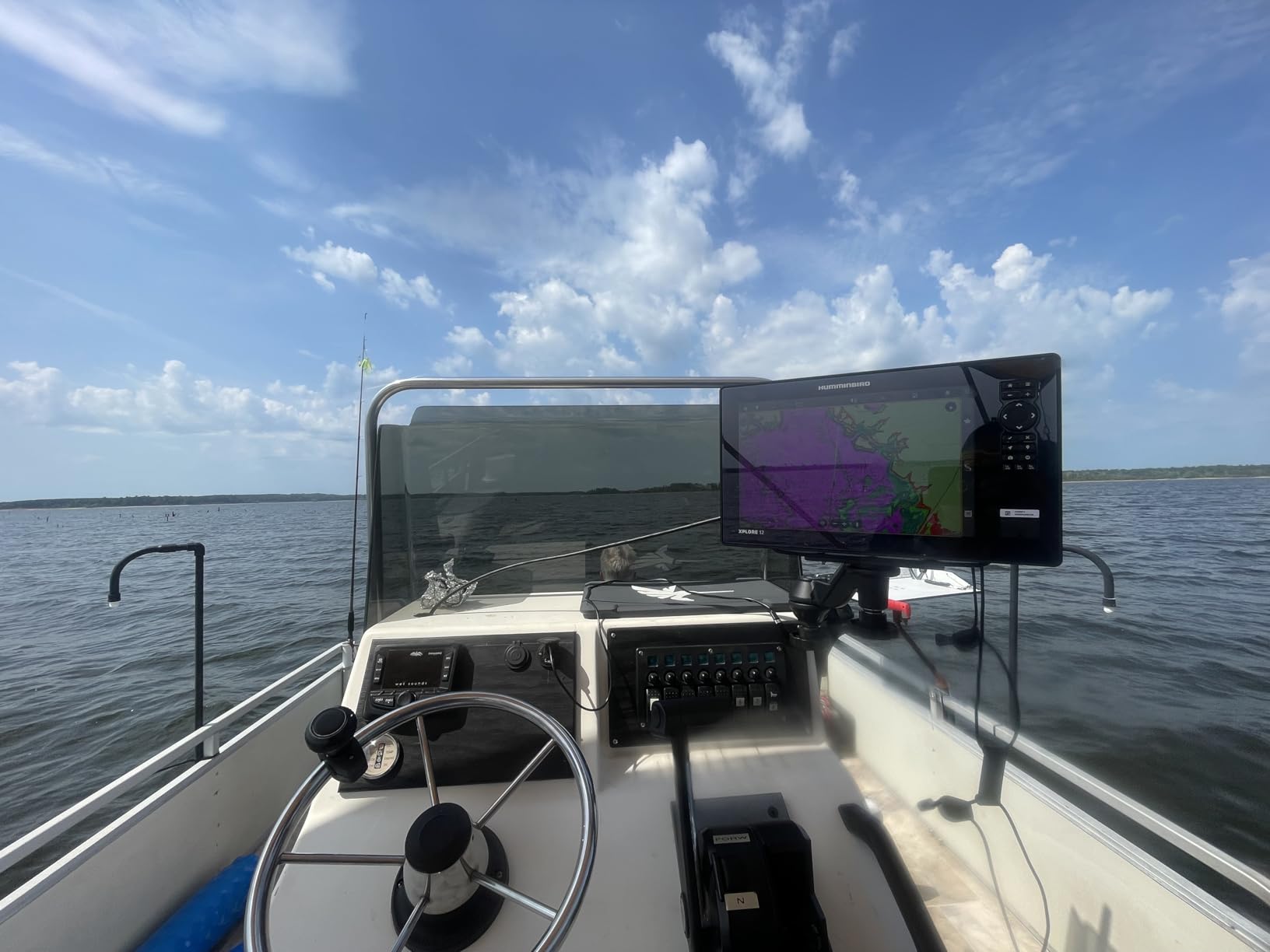

Humminbird XPLORE 10 GPS Fish Finder with Transducer, MEGA Side Imaging+ & HD Touchscreen
10 inch color TFT
MEGA Side Imaging plus to 200 feet each side
MEGA Down Imaging plus
One-Boat Network
Pros
- MEGA Side Imaging plus reaching 200 feet each side
- MEGA Down Imaging plus to 200 feet
- 10 inch touchscreen with keypad fallback
- One-Boat Network with Minn Kota motors and Ethernet
- Three year warranty with registration
Cons
- Steep learning curve for networked units
- Included coastal card can be sparse nearshore
- NMEA 2000 only so legacy sensors will not network
The XPLORE is the Humminbird unit that finally moves off the keypad. The 10 inch touchscreen handles menu work quickly, and a keypad is still there when the screen is wet or your gloves are on.
MEGA Side Imaging plus reaches 200 feet on each side, and MEGA Down Imaging plus goes to 200 feet below the boat. On a deep lake that combination gave me the widest useful coverage of any unit I ran.
AutoChart Live records depth contours, bottom hardness, and vegetation with eight hours of built-in recording, and the included LakeMaster and CoastMaster VX card covers US and Canadian lakes.
One-Boat Network ties the unit to Minn Kota trolling motors, NMEA 2000, and high-speed Ethernet. Bluetooth handles anchor control and phone notifications from the helm.
Best use: a console boat with more than one screen
The Ethernet and NMEA 2000 backbone makes this the natural pick for a boat that will grow a second display or a bow unit later. Owners moving up from older Helix models describe the jump in screen sharpness and interface speed as the main upgrade.
It is also the one to buy if you already run Humminbird charts and want that side-scan range without leaving the brand.
Where it falls short
The learning curve is real, especially for anyone new to networked displays. Budget a full trip to set up screens, units, and networking before you need it on the water.
Compatibility is narrower than the name suggests. It is NMEA 2000 only, so older heading sensors and legacy gear will not join the network, and some owners report the included coastal card runs sparse in nearshore areas.

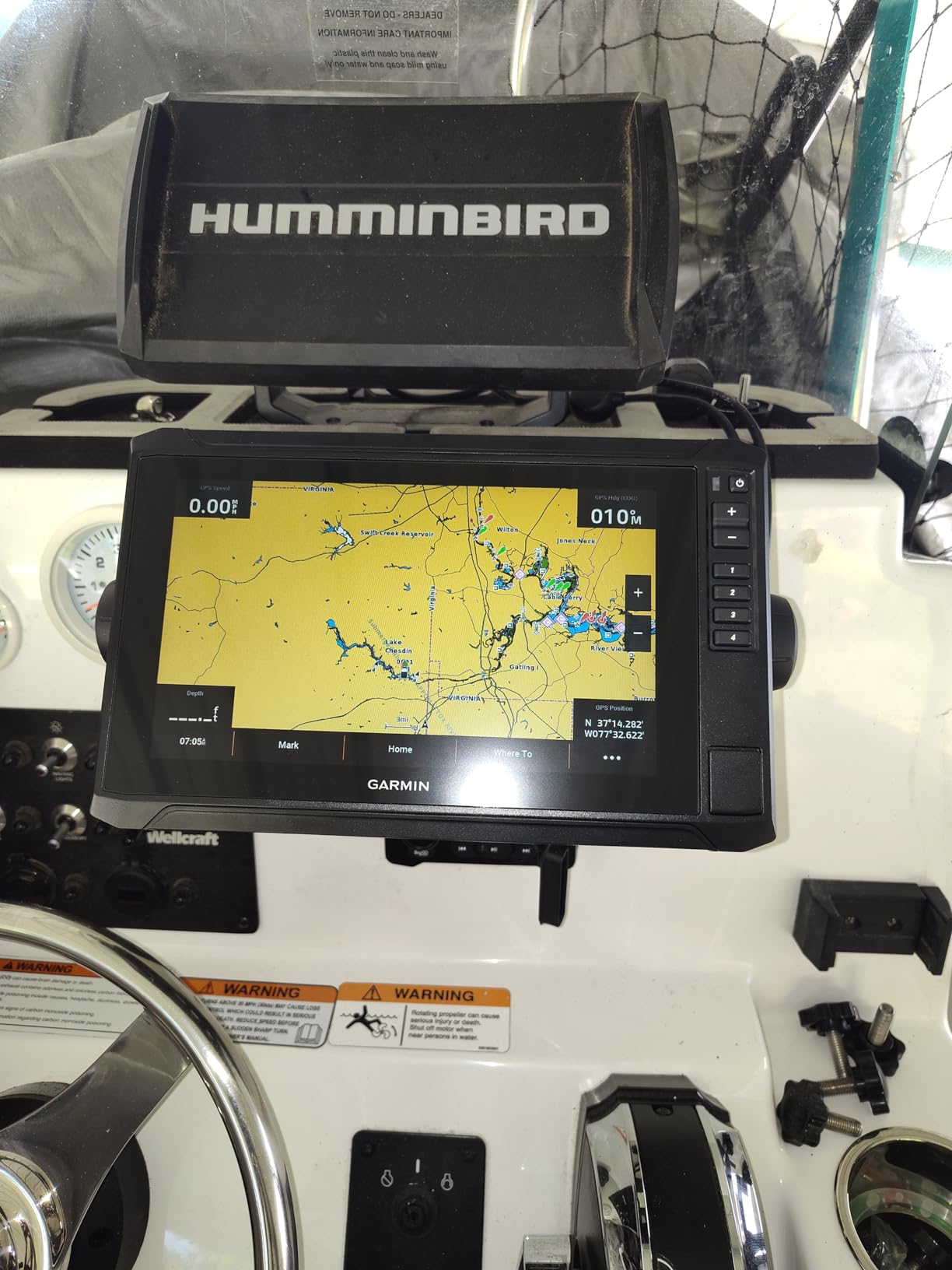

7. Garmin ECHOMAP UHD2 94sv: Best Chartplotter With Side Scan Built In

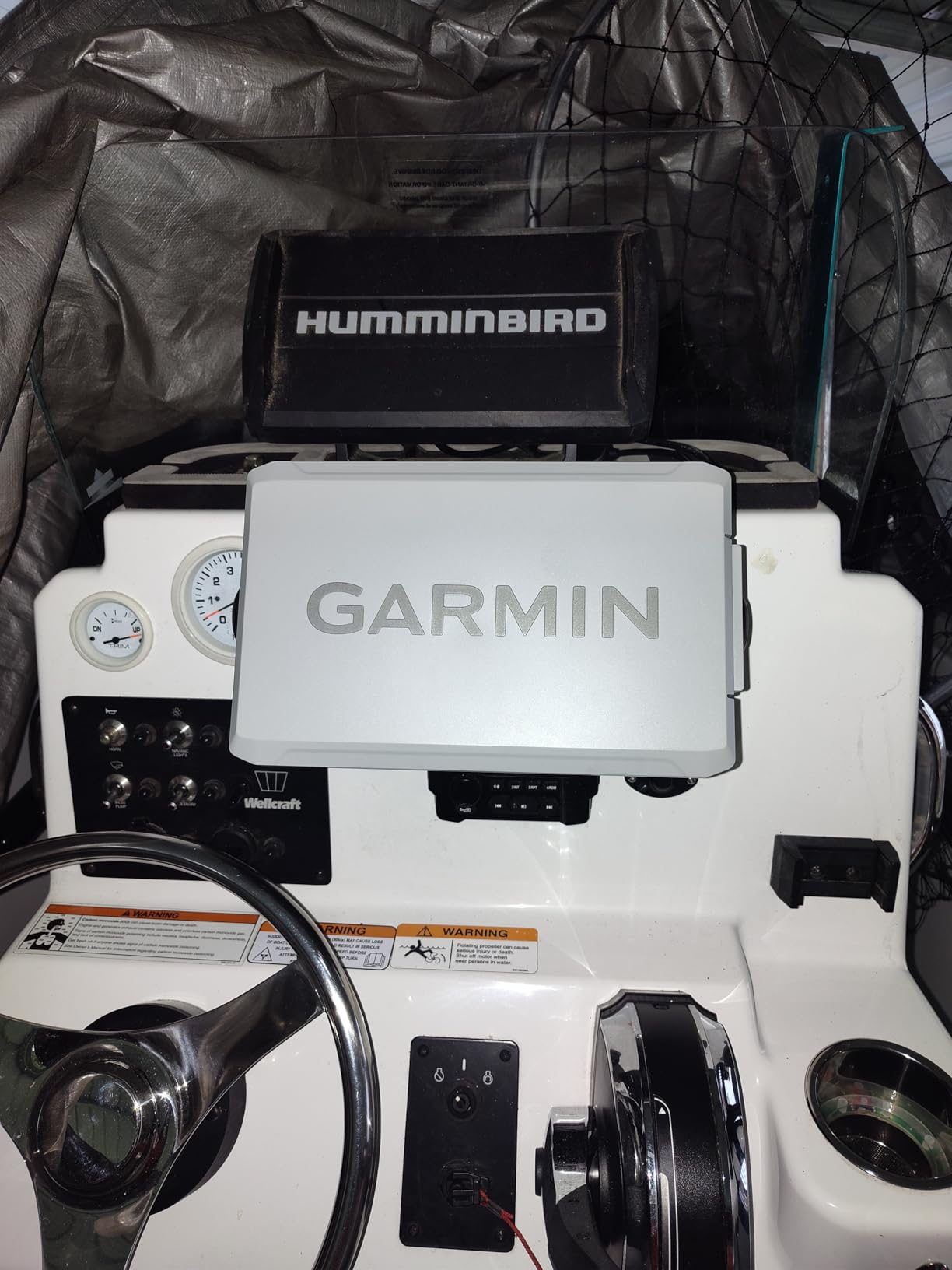

Garmin ECHOMAP UHD2 94sv with GT56 Transducer, 9″ Touchscreen Chartplotter, Garmin Navionics+ U.S. Coastal
9 inch touchscreen
GT56 transducer with SideVu
Bundled Navionics+ charts
Wireless Force motor link
Pros
- GT56 transducer supplies traditional
- ClearVu and SideVu
- Bright 9 inch touchscreen with a wide viewing angle
- Garmin Navionics+ charts included
- Wi-Fi sharing with a second ECHOMAP UHD2
- Wireless link to a Force trolling motor
Cons
- Graphical menu takes some getting used to
- Many bundles across screen size
- transducer and charts
The ECHOMAP UHD2 94sv is the pick when you want a chartplotter and side imaging in the same box. It carries built-in Garmin Navionics+ charts, so you can navigate and scan structure on one screen.
The included GT56 transducer handles traditional, ClearVu, and SideVu sonar. On my console boat it paired with a Garmin Force trolling motor over a wireless link, letting the unit run routes and hold speed while the side view stayed up.
Screen quality is a strength. The 9 inch touchscreen is bright enough for direct sun and holds a readable viewing angle when mounted low on a console, which many smaller panels struggle with.
Wi-Fi also shares sonar, waypoints, and routes with a second ECHOMAP UHD2, so a dual-screen boat is a later upgrade rather than a rebuild.
Best use: a boat with a console and a full navigation plan
If you are charting a lake rather than just finding fish, this is the right shape of unit. Navionics+ detail plus a 9 inch panel is where chart navigation stops being an extra screen.
Route following and speed control from the same unit that shows you the side view is the workflow that makes it worth the step up.
Where it falls short
The graphical menu hierarchy takes practice. Markers and settings are not always where a first-time Garmin user expects them, and finding one while the boat is moving costs attention.
This model family is sold in many combinations of screen size, transducer, and chart bundle, so check that the package you are buying actually includes the GT56 transducer.
8. Humminbird Helix 7 G4: Best Rugged Keypad Control With 125 Foot Side Scan
Humminbird Helix 7 G4 GPS Fish Finder with Transducer, MEGA Side Imaging
7 inch color TFT
MEGA Side and Down Imaging to 125 feet
Dual Spectrum CHIRP
Softkey keypad
Pros
- MEGA Side and Down Imaging reaching 125 feet each way
- Dual Spectrum CHIRP with Wide and Narrow modes
- Basemap covers 10000+ lakes and US coastline
- AutoChart Live with 8 hours of recording
- Softkey keypad usable in any weather
Cons
- Keypad interface is slower than touch
- Only 8 hours of AutoChart Live recording included
The Helix 7 G4 adds MEGA Side Imaging to the Helix 7 line, covering 125 feet to each side and 125 feet below the boat. The transducer is included, so the box is complete out of the gate.
This is the unit I trust most in bad weather. The softkey keypad works with cold hands and a soaking shirt, and nothing on screen has to be hit precisely at speed.
Dual Spectrum CHIRP gives you a Wide mode for coverage and a Narrow mode for target separation. Running Narrow while following a weed edge gave cleaner fish separation than the wide setting on the same flat.
AutoChart Live gives eight hours of built-in recording, and the basemap covers more than 10000 lakes plus the US coastline. Zero Line SD cards extend that storage.
Best use: cold water and rough conditions
Buttons do not fail when a screen does. In rain, whitecaps, and early-season cold, this is the least frustrating unit in the roundup to operate one-handed.
For anglers over 50 or anyone who has fished with a dedicated handheld, the keypad layout needs no learning curve.
Where it falls short
The tradeoff is speed. Menu changes and marker placement are slower than on any touchscreen here, and the 7 inch panel limits how many views you can split comfortably.
Eight hours of AutoChart recording has to be downloaded and cleared regularly on a lake you are mapping for the first time.

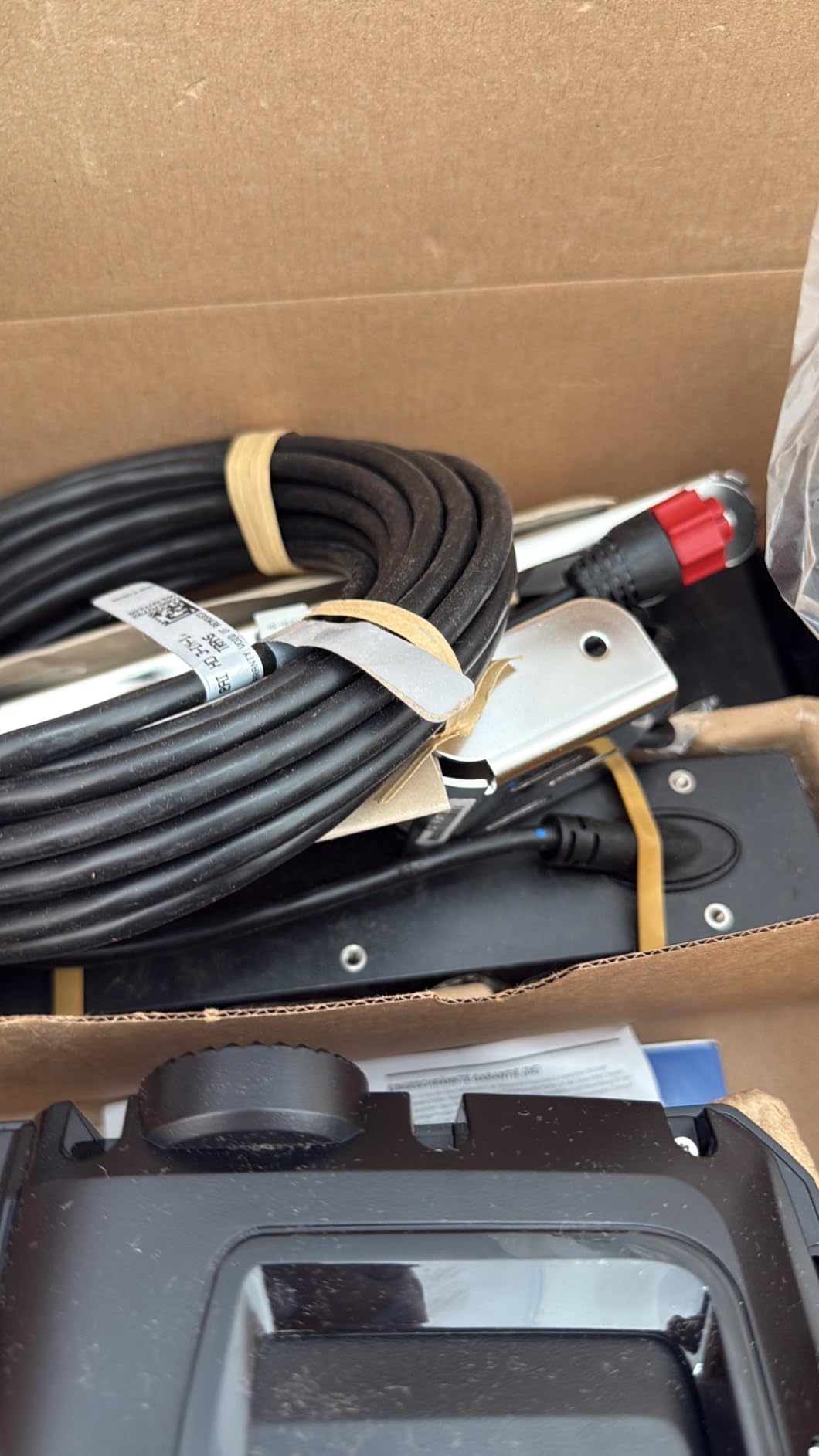

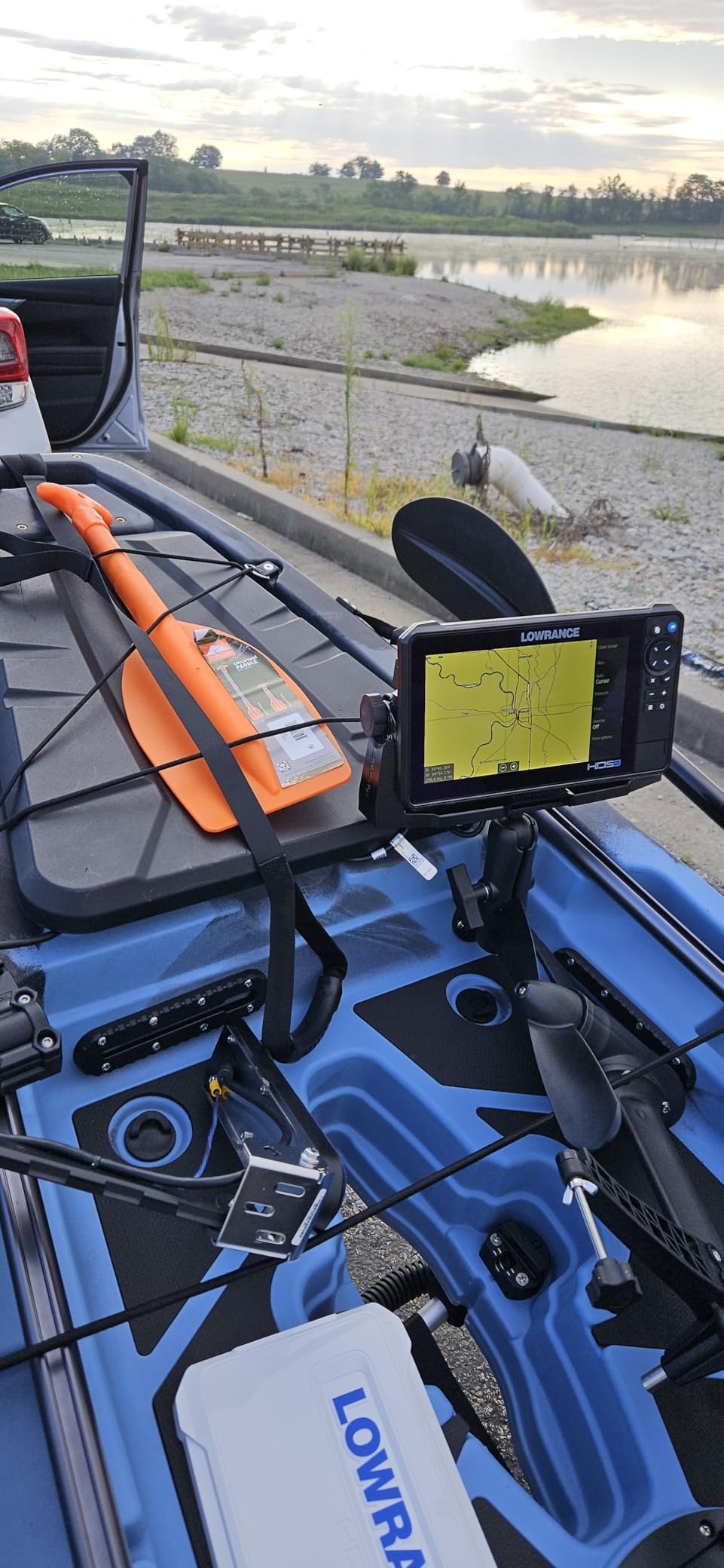

9. Lowrance HDS PRO 10: Best for Running Side and Down Imaging Together
Lowrance HDS PRO 12 Fish Finder with Active Imaging HD 3-in-1 & C-MAP
10 inch SolarMAX HD touchscreen
Active Imaging HD 3-in-1
SideScan and DownScan together
Ethernet and NMEA 2000
Pros
- Active Imaging HD 3-in-1 with CHIRP
- SideScan and DownScan
- 10 inch SolarMAX HD screen readable through polarized lenses
- SideScan and DownScan viewable at the same time
- Ethernet
- NMEA 2000
- wireless and Bluetooth
- Preloaded C-MAP DISCOVER charts
Cons
- Documentation is thin and no printed manual is included
- Regional lockout reported outside the US and Canada
- ActiveTarget live sonar hardware is sold separately
The HDS PRO is the pick when you want to watch structure to the side and fish below the boat at the same time. SideScan and DownScan display simultaneously on the SolarMAX HD screen, which is the main reason to move up from an Elite FS.
Image quality is the strongest argument. The Active Imaging HD 3-in-1 transducer delivers high definition CHIRP, and the screen stays readable through polarized lenses and at wide viewing angles.
Connectivity is the other strength. Ethernet, NMEA 2000, wireless, and Bluetooth cover displays, radar, and trolling motors from bow to stern, and owners report the network working reliably once configured.
Preloaded C-MAP DISCOVER charts cover US and Canadian inland and coastal water, so the unit is usable on a first trip to a lake you have never seen.
Best use: a multi-display boat or an upgrade path
If your boat will end up with a bow unit and a helm unit, this is built for it. The Ethernet backbone makes adding displays and shared sonar simpler than on any other unit here.
Live sonar from ActiveTarget 2 XL can be added later if you decide you want forward-facing fish and lure tracking.
Where it falls short
Documentation is the weak point. Owners report a vague installation manual and no printed user manual, so budget time with the community and support channel rather than expecting to read your way through setup.
Several international buyers report the unit becoming inactive outside the US and Canada region, and live sonar hardware is not included. The model is also listed from 9 to 16 inches, so confirm the size in the bundle you buy.
How to Choose a Side Imaging Fish Finder for Lakes
Pick a screen size that fits your boat
A 7 inch panel is the right answer for a jon boat, kayak, or small bass boat, and it is enough to run side scan beside a chart. A 9 to 10 inch screen pays off on a console boat where you want side scan, down imaging, and a chart visible without squinting.
Anything above 10 inches starts to demand real console space. Measure the usable panel area before you fall for a large display that will not fit where you want it.
Choose frequency for your lake depth
Higher frequency gives sharper detail at short range and lower frequency reaches further. On a clear lake under 15 feet, run the higher frequency side channel and pull range in to two or three times the depth. On a 40 foot reservoir with a ledge in 60 feet of water, drop to the lower channel and widen range.
Side scan is not a deep-water tool. Realistically you read useful returns to 100 to 200 feet a side on most lakes, and beyond that the picture turns to haze unless you are on a low frequency channel.
Decide how you will map
If you fish one lake hard, self-made mapping beats premium charts. AutoChart Live on the Humminbird units and Quickdraw contours on the Garmin units both let you draw your own 1 foot contours as you run. Lowrance units in this roundup carry preloaded inland charts instead, with an SD slot on the HOOK2 12 for added map detail.
Budget the storage. Recording time is limited on each unit, and you will download to a laptop or phone between trips.
Think about networking and trolling motors
More than one display on a boat needs a network backbone. Lowrance and Humminbird networked units here use Ethernet plus NMEA 2000, while Garmin pairs ECHOMAP UHD2 screens over Wi-Fi and links wirelessly to a Force trolling motor.
The NMEA 2000-only design on the XPLORE is worth noting if your boat has older heading sensors or legacy equipment. Multiple screens also mean a dedicated power run and a properly sized fuse block, which is a real part of the install cost.
Brand verdicts and reliability
Garmin wins on transducer clarity and menu tuning, Humminbird wins on side-scan range and self-made charting, and Lowrance wins on plug-and-play reliability and processing power. Anglers on fishing forums consistently report that pros run Garmin, Humminbird, and Lowrance on default settings and still get usable images.
The same forums raise a reliability concern with Humminbird units, describing a higher failure rate than Garmin and Lowrance while still praising Humminbird for the best shallow-water side scan. Budget for a warranty registration and keep your mount wiring tight.
Before you buy, check whether a second screen or a power setup changes your plan, the way our step-by-step testing notes cover matching hardware to a job before committing.
Frequently Asked Questions
Which fish finder has the best side view?
For raw side-scan reach and image detail, the Garmin STRIKER Vivid line and the Garmin ECHOMAP UHD2 94sv with a GT56 transducer are the strongest side views available for lake anglers. The Humminbird XPLORE covers 200 feet to each side with MEGA Side Imaging plus and pairs that range with a 10 inch touchscreen. For shallow clear water under 15 feet, the Humminbird Helix 7 CHIRP SI GPS G4 is widely reported to hold detail better than mid-tier units.
Which brand has the best side imaging for lakes?
Humminbird and Garmin split the win for lakes. Humminbird leads on side-scan range, with MEGA Side Imaging plus reaching 200 feet each side, and on self-made charting through AutoChart Live. Garmin leads on transducer clarity and fine-tunable menus, and its Quickdraw contours build 1 foot maps as you run. Lowrance sits between them, with a single Active Imaging 3-in-1 transducer covering CHIRP, SideScan, and DownScan.
What is the best budget side imaging fish finder?
The Garmin Striker 7SV is the strongest entry point because it includes a CV52HW-TM transducer with SideVu and ClearVu scanning plus built-in Quickdraw contours, all on a bright 7 inch color display. The Humminbird Helix 7 CHIRP SI GPS G4 is the other budget-friendly option, with CHIRP Side Imaging, AutoChart Live recording, and a basemap covering more than 10000 lakes. Both are simpler than networked multi-display units.
What frequency should I use for shallow water side scan?
Use the higher frequency side channel in shallow water. Higher frequency returns sharper detail at short range, which is exactly what you need under about 15 feet, and you should also pull the range setting in to roughly two or three times the water depth. Drop to a lower frequency and widen range only when you are chasing structure in deeper water where detail matters less than reach.
How deep can you realistically use side imaging?
Side imaging is built for structure beside the boat rather than deep water. On most lakes you get clean returns out to about 100 feet to each side, and the longest-range units here reach 200 feet on a side, with one model claiming 300 feet a side. In water under 10 feet the beam hits bottom too steeply and the picture degrades, so shallow water needs a tighter range setting instead of more sensitivity.
Is side imaging worth the extra money over down imaging?
For lake fishing, yes, because side imaging lets you break down a large flat or drop-off from a distance and mark it with a waypoint instead of fishing it blind. Down imaging tells you what is directly beneath the hull, which only helps once you are already on top of fish. The division of labor that works best is side scan to find and down imaging to confirm what is holding there.
How do I read side imaging on a lake?
Set range to two or three times the water depth, then read outward from the center depth column. Hard, dark shadows are rock, gravel, or timber. Texture behind a shadow usually means brush, moss, or vegetation. Baitfish show as arcs suspended above the bottom, with gamefish under them. Drop a waypoint the moment a shadow forms and run a second pass to confirm it before you fish it.
The Bottom Line for Lake Anglers
The Garmin Striker 7SV is our pick for the best side imaging fish finders for lakes, because it delivers real SideVu scanning, a sunlight-readable 7 inch screen, and self-made Quickdraw contours in a package most anglers will actually mount. Anglers who want more screen and a three-mode transducer should step up to the Lowrance Elite FS 10.
Pick the Humminbird Helix 7 CHIRP SI GPS G4 for mapping, the Humminbird XPLORE 10 for long-range scanning and a boat full of screens, and the Garmin ECHOMAP UHD2 94sv when you want navigation built in. Check the current details on each listing before you buy, then run your first pass at a slower speed than you think you need.
